FLV2+8 High-Temp Hybrid Connector 80A 600VAC Black ABS Housing for
Industrial Vehicles
Features
- High-Current Design: Supports 80A/100A continuous current with dual-rated voltage (1000V DC/600V AC) for robust power transmission.
- Touch-Proof & Safety-Certified: Reinforced insulation and shrouded contacts ensure user safety
during installation and operation.
- IP67 Waterproof & Dustproof: Sealed with waterproof gaskets and rings, ideal for harsh
environments (e.g., automotive, industrial).
- Enhanced Durability:
- 500+ mating cycles with stamped metal terminals (gold/nickel-plated for corrosion
resistance).
- Salt spray resistance tested for 144 hours (mated condition).
- Poka-Yoke Keying: L/R-Type keying options prevent mismating in tight spaces.
- Wide Compatibility:
- Power cables: 10-16mm² (supports high-current EV applications).
- Signal wires: 0.75-1.5mm² (16-18 AWG) for integrated control systems.
Applications
- Electric Vehicles (EVs): Battery packs, motor controllers, charging ports, and driving
systems.
- Energy Storage Systems: Lithium/lead-acid battery interconnects, family laminated storage
boxes.
- Industrial Machinery: Low-speed EV battery swaps, rugged industrial wiring.
Specifications
| Parameter | Value |
|---|
| Rated Current | 80A / 100A (continuous) |
| Rated Voltage | 1000V DC / 600V AC |
| Insulation Resistance | 5000MΩ (dry) / 200MΩ (95% RH) |
| Test Voltage | 4800V DC (power) / 2200V AC (signal) |
| Temperature Range | -40°C to +125°C |
| IP Rating | IP67 (with waterproof gasket) |
| Certifications | USCAR-2, USCAR-37, RoHS compliant |
Key Advantages for B2B Buyers
- Reliability in Extreme Conditions:
- Operates flawlessly in temperatures from -40°C to +125°C and withstands humidity, vibration, and salt spray.
- ABS plastic housing ensures lightweight yet durable construction.
- Precision Engineering:
- Gold/nickel-plated terminals reduce resistance and enhance
conductivity.
- 0.3~0.4N·m torque-controlled assembly (using "instant brake" tools) guarantees secure connections.
- Versatile Integration:
- Compatible with F3-C20136/F3-C20138 series terminals for flexible wiring configurations.
- Supports hybrid power-signal transmission, streamlining EV and
energy storage system designs.
- Compliance & Safety:
- Meets automotive industry standards (USCAR-2/37) and global
environmental regulations (RoHS).
Why Choose FLV2+8?
- Optimized for EVs: Tailored for high-voltage battery systems and fast-charging
infrastructure.
- Future-Proof Design: Scalable for next-gen energy storage and industrial automation
demands.
- Global Support: Backed by rigorous QA testing and detailed installation
guidelines for seamless deployment.
Contact us for custom configurations (e.g., specific terminal
plating, wire ranges) to meet your project needs!

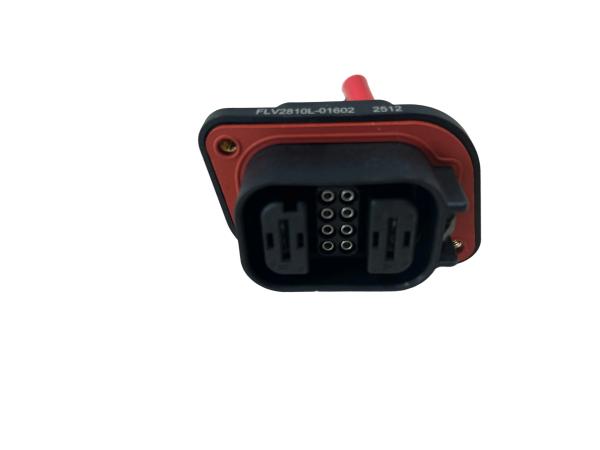

Product Pictures:
Drawings:
