    200A High Voltage Power Socket , IP20B Electric Car Charging Sockets

    Quick lock 200A one Pin Flat plug connector used for Power Cabinet station

    Features:

    • Secondary lock function

    • Cable range: 16~50mm2

    • Poka-yoke

    • HVIL

    • Touch-proof

    • 360°shielding

    Application:

    • Motor controller
    • Lithium battery, lead-acid battery
    • Driving system
    • charging system

    Specifications:

    • Rated current: 80A/120A/150A/200A
    • Rated voltage: 1000V DC
    • Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
    • Dielectric withstanding voltage:3000V AC
    • Temperature Range: -40~+85 ℃
    • IP Rating: IP20

    Parameters:

    Rated Current:80A/120A/150A/200A
    Rated Voltage:

    1000V DC

    Insulation Resistance:5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
    Dielectric Withstanding Voltage:3000V AC
    Temperature Range:-40~+85℃
    IP Rating:IP20
    Application:Motor controller, battery, driving system, charging system

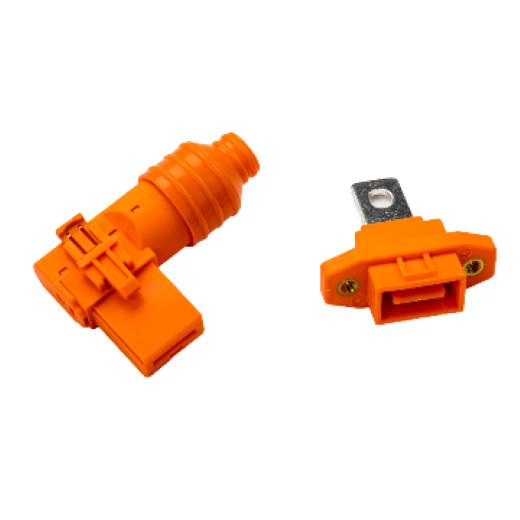

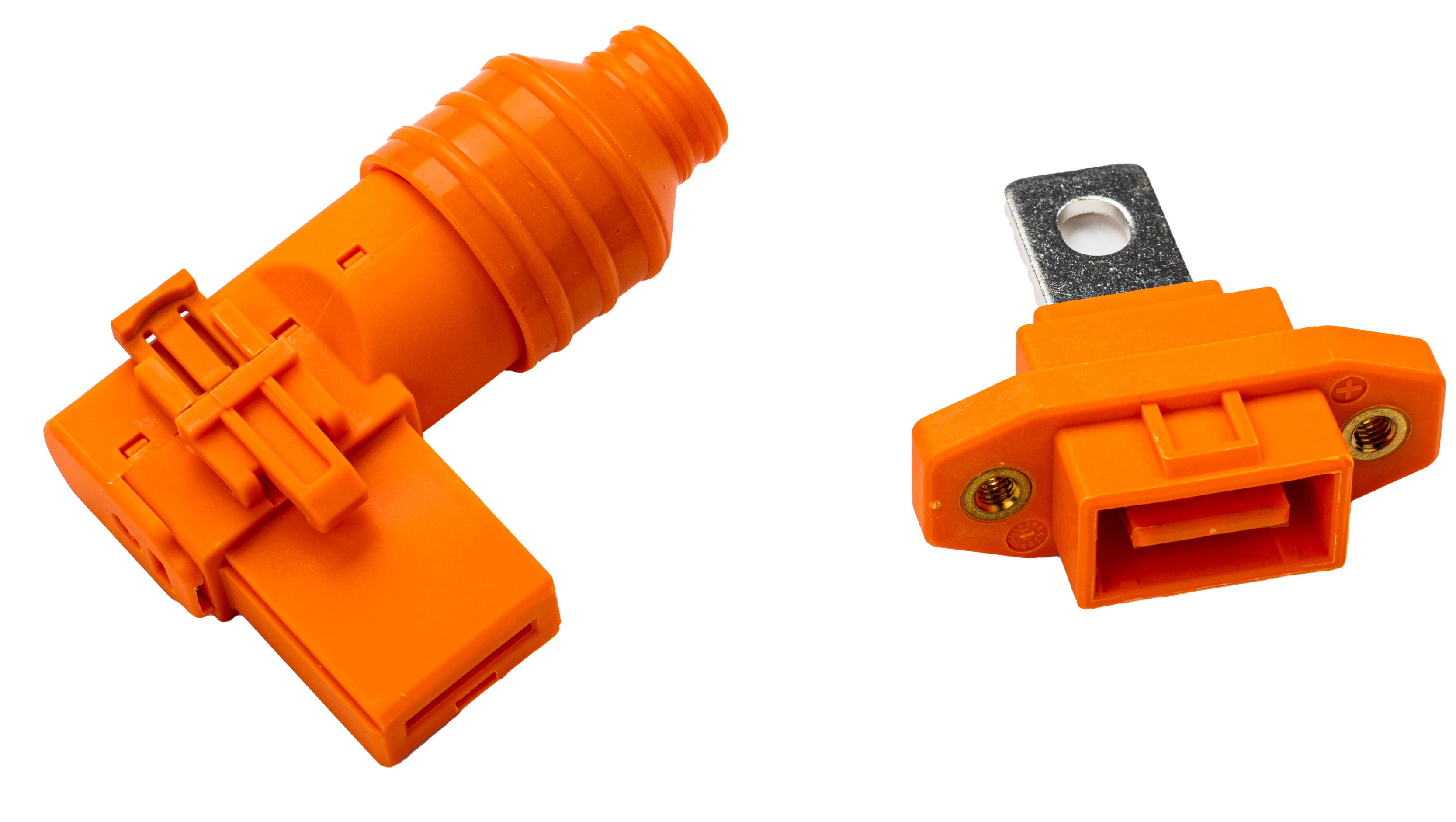

    Product Pictures:


    Drawings:


    Company Profile

    NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

    Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.


    Certifications & Approvals


    The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
