2Pin Power Motorcycle Electrical Connector With 9Pin Signal

Ask Lasest Price
Brand Name :	Neopower
Certification :	USCAR2
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

2Pin Power Motorcycle Electrical Connector With 9Pin Signal

2 pin power with 9 pin signal Electrical Motorcycle Connector

Part No:

Features:

Secondary lock function
Cable range: Power:8AWG Signal:20AWG
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

Motor controller
Driving system
charging system

Specifications:

Rated current: 70A
Rated voltage: DC 1000V
Insulation resistance: 5000MΩ MIN( DRY)200MΩ MIN(RH 95%)
Dielectric withstanding voltage:3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67B

Parameters:

Rated Current:	70A
Rated Voltage:	DC 1000V
Insulation Resistance:	5000MΩ MIN( DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage:	3000V AC
Temperature Range:	-40~+125 ℃
IP Rating:	IP67B
Application:	Motor controller, driving system, charging system

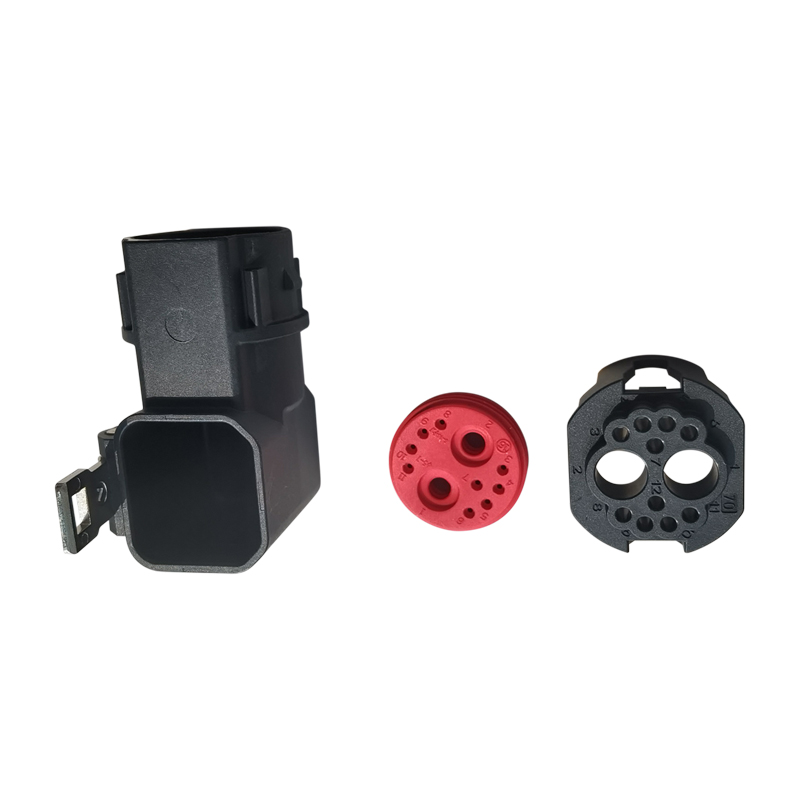

Product Pictures:

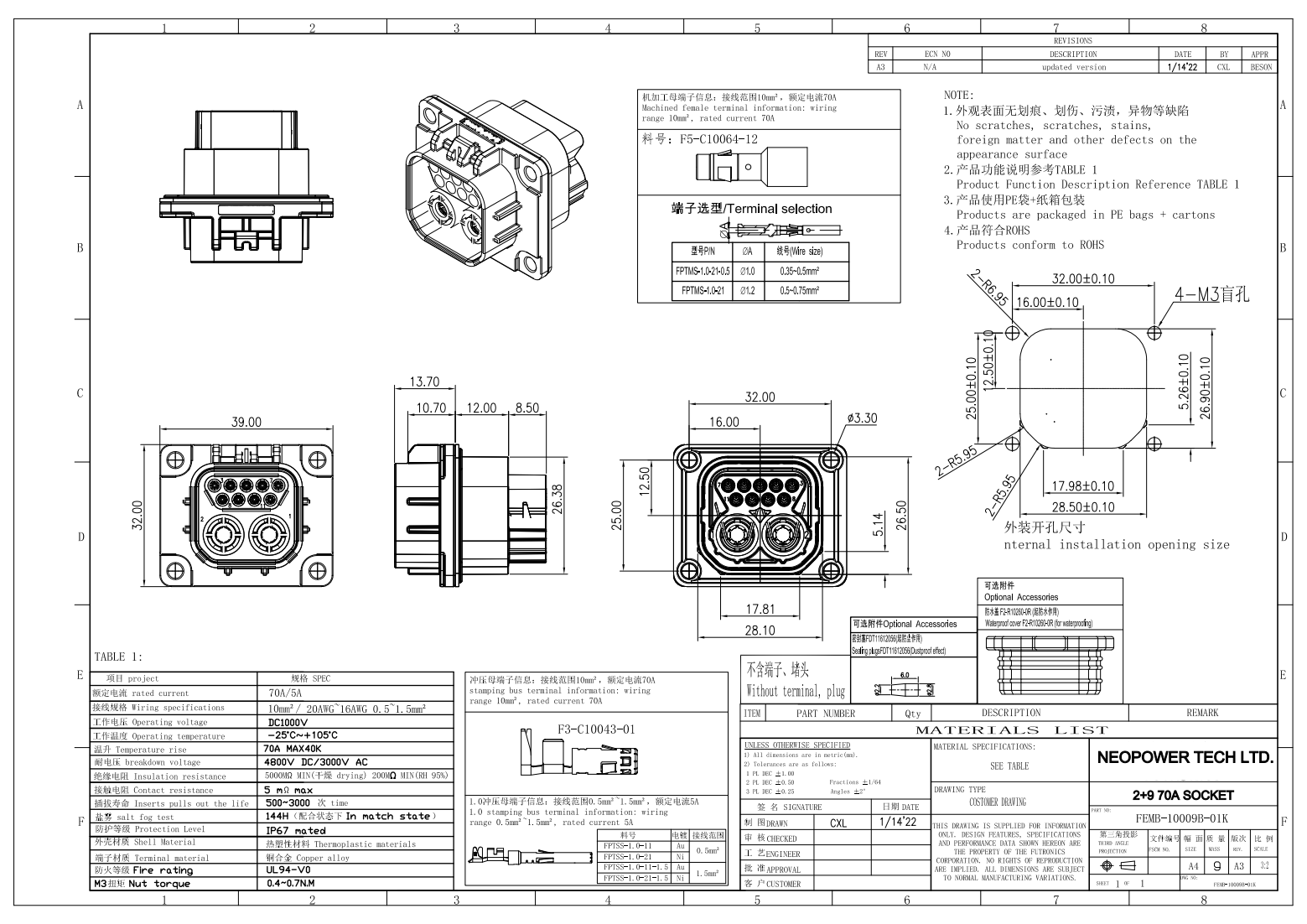

Drawings

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
