High Current 250A Metal Shell Right Angle Plug Vehicle Mounted For PTC

Ask Lasest Price
Brand Name :	Neopower
Certification :	USCAR-2/ USCAR-37 RoHS LV215
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

High Current 250A Metal Shell Right Angle Plug Vehicle Mounted For PTC

Metal shell 250a Vehicle-mounted Straight Right Angle Straight Plug Connector

Features:

Secondary lock function
Cable range: 35mm2~75mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

Motor controller
Lithium battery, lead-acid battery
Driving system
charging system

Specifications:

Rated current: 250A
Rated voltage: 1000V DC
Insulation resistance: 5000MΩ(@25℃ 40%-60%RH)
Dielectric withstanding voltage:3000V DC
Temperature Range: -40~+125 ℃
IP Rating: IP67

Parameters:

Rated Current:	250A MAX
Rated Voltage:	1000V DC
Insulation Resistance:	5000MΩ(@25℃ 40%-60%RH)
Dielectric Withstanding Voltage:	3000V AC
Temperature Range:	-40~+125 ℃
IP Rating:	IP67
Application:	Motor controller, battery, driving system, charging system

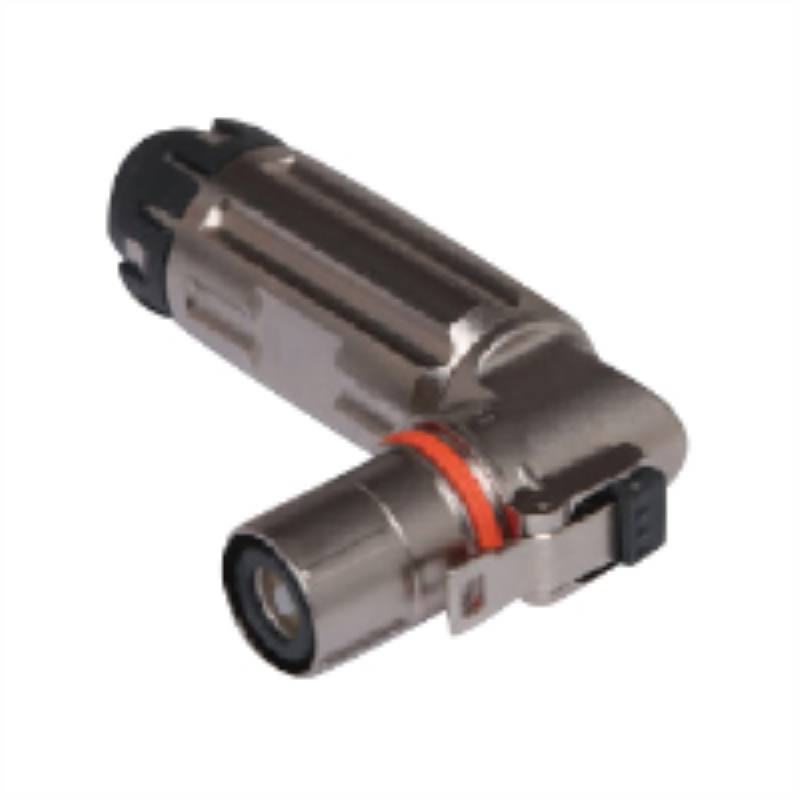

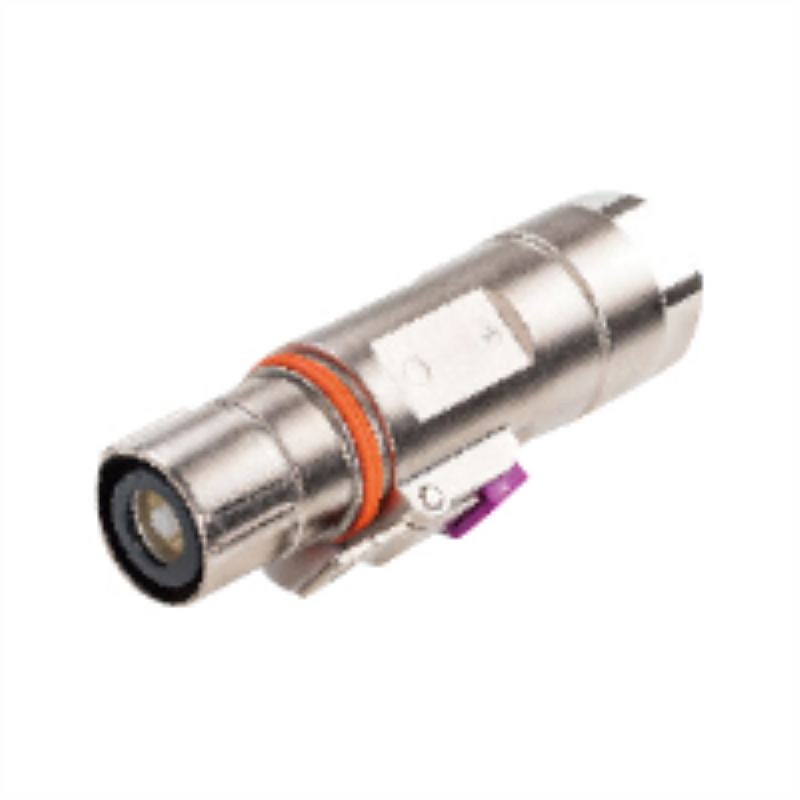

Product Pictures:

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
