Metal Junction Box IP67 300A EV Battery Connector High Voltage Terminals

Ask Lasest Price
Brand Name :	Neopower
Certification :	USCAR/ UL/ TUV
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

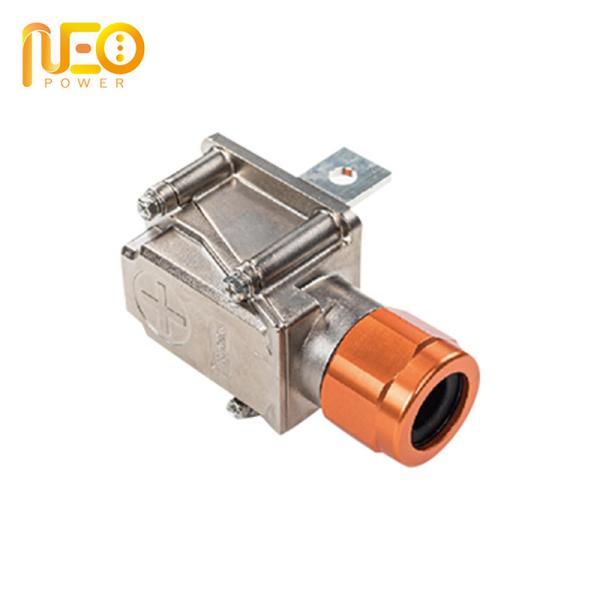

Metal Junction Box IP67 300A EV Battery Connector High Voltage Terminals

Metal Junction Box IP67 300A Electric Vehicle Battery High-voltage Terminals

Features:

Secondary lock function
Cable range: 50~95mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

Motor controller
Lithium battery, lead-acid battery
Driving system
charging system

Specifications:

Rated current: 300A MAX
Rated voltage: 1000V DC
Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric withstanding voltage:3000V DC
Temperature Range: -35~+70 ℃
IP Rating: IP67

Parameters:

Rated Current:	300A MAX
Rated Voltage:	1000V DC
Insulation Resistance:	5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage:	3000V DC
Temperature Range:	-35~+70℃
IP Rating:	IP67
Application:	Motor controller, battery, driving system, charging system

Product Pictures:

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
