Big Flange Short Type Right Angle Connector Energy Station Socket Wire Harness

Ask Lasest Price
Brand Name :	Neopower
Certification :	USCAR/ UL/ TUV
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

Big Flange Short Type Right Angle Connector Energy Station Socket Wire Harness

Right Angle short type Power Station Socket Big Flange Connector Wire Harness

Features:

Secondary lock function
Cable range: 10~25mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

Motor controller
Lithium battery, lead-acid battery
Driving system
charging system

Specifications:

Rated current: 70A , 100A , 125A
Rated voltage:TUV 600V DC
Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric withstanding voltage:TUV 2210V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67

Parameters:

Rated Current:	70A , 100A , 125A
Rated Voltage:T	UV 600V DC
Insulation Resistance:	5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage:	TUV 2210V AC
Temperature Range:	-40~+125 ℃
IP Rating:	IP67
Application:	Motor controller, battery, driving system, charging system

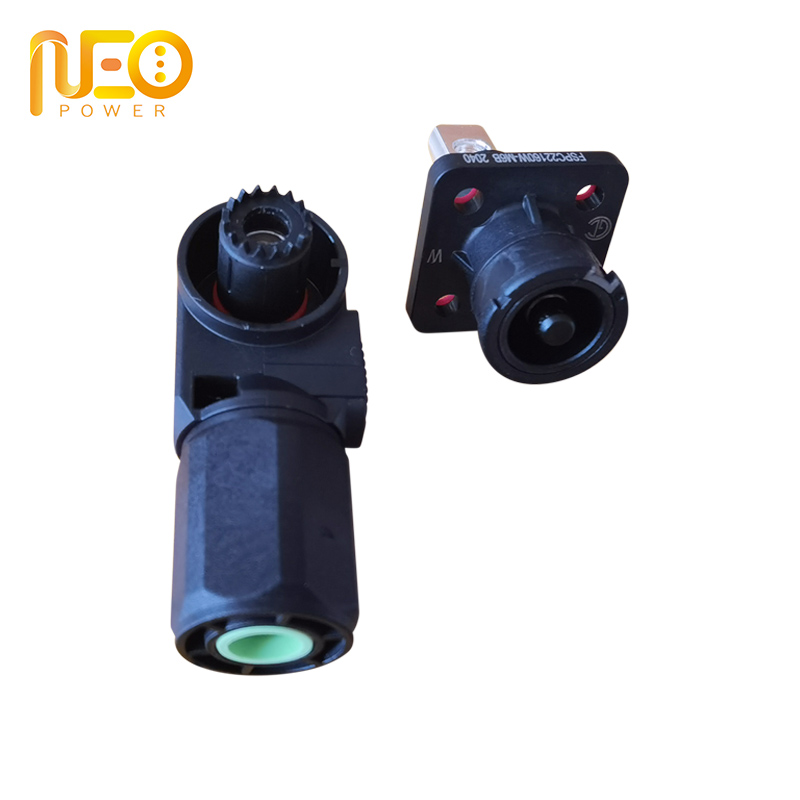

Product Pictures:

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
