14 Pin CANbus RS485 RS232 I2C Communication Touch Proof Vehicle
Signal Waterproof Connector
Part No.:FLV 6014
Description:
This product is vehicle signal connector ,used for signal
transmission between the vehicle charger, battery pack, high
voltage distribution box, motor controller, motor, air conditioner,
PTC and other components.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- High-voltage Distribution Box
- Motor & Controller
- Process Control/Automation
- Heavy Equipment
- PTC
Parameters:
| Electrical Performance |
| Rated Current | 8A max |
| Rated Voltage | 500V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 2000V AC |
| EMI Shielded | Yes |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 0.5 mm2~1.5mm2 |
| Environment Performance |
| Protection Grade | IP67 |
| Operation Temperature | -40 ℃ ~+125 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
| USCAR-37 |
Product Pictures:
Drawings:

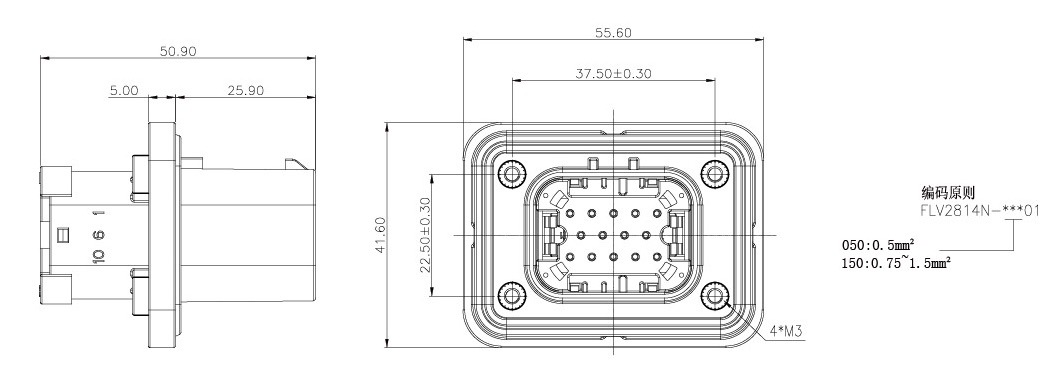

Socket

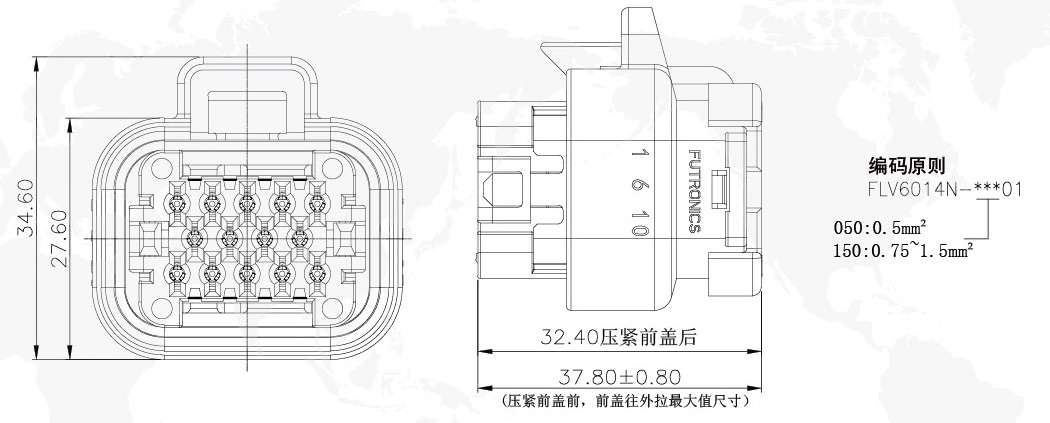

Plug
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, NeoPower delivers top
quality products and excellent services to customers around the
world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality
control system, and its products are CE, TVU, RoHs approved.
