Right Angle 250VAC 16A Electric Vehicle Charging Connectors 1 Phase

Ask Lasest Price
Brand Name :	NeoPower
Model Number :	EVP691A
Certification :	GB/T20234, 1/2-2015, GB/T 18487,1-2015
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

Right Angle 250VAC 16A Electric Vehicle Charging Connectors 1 Phase

Right Angle Electric Vehicle EV Plug Connector AC Charging Gun 1 Phase 3-Phase

Part No.:EVP691A

Description:

This product is 90° right angle AC Charging Gun, with 250V AC 1-Phase and 440V AC 3-Phase optional, in line with GB/T 20234-2015, GB/T 18487-2015 stanards, used for Electric Vehicle (EV) charging.

Features:

Rated Voltage: 250AC/440V AC
Rated Current: 16A/32A
Single phase/3-phase Optional
Protection Level: IP55 (Mated)
Type of charge plug: vehicle connector, plug
Standard: GB/T20234, 1/2-2015, GB/T 18487,1-2015

Technical Parameters:

Rated Voltage	250V AC/440V AC
Rated Current	16A/32A
AC Phase	Single phase/3-phase Optional
Protection Level	IP55 (Mated)
Type of charge plug	vehicle connector, plug
Standard	GB/T20234, 1/2-2015, GB/T 18487,1-2015

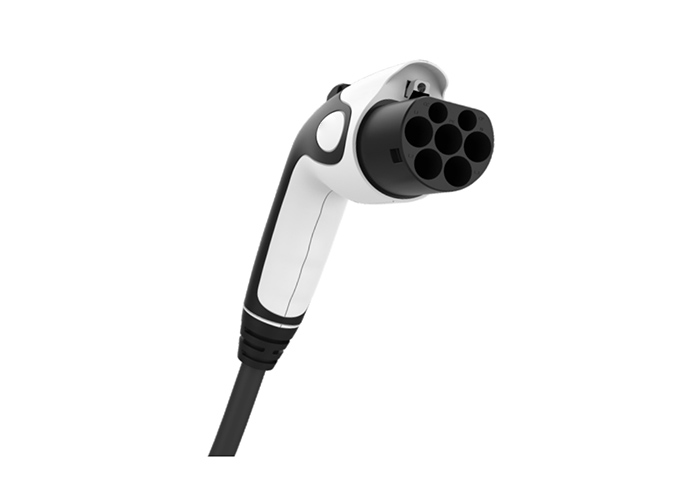

Product Pictures:

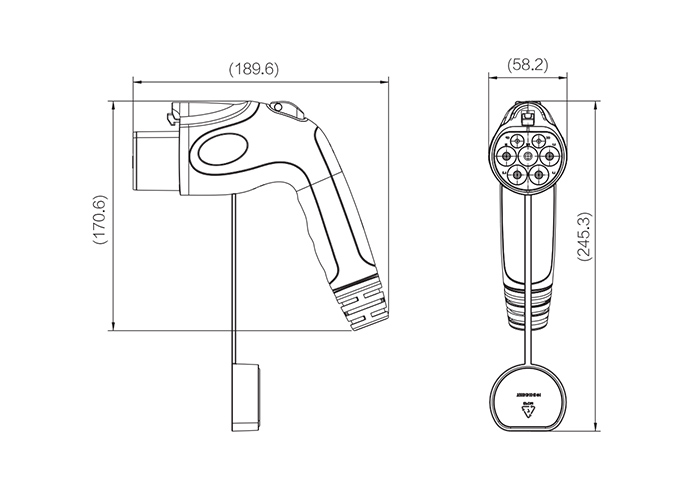

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
