Single Pin Mobile Phone 3 Distribution Boxes Motor Controller
Battery Packs Cable DC Power Waterproof Connector
Part No.: FPL2*021601P
Description:
This metal shell connectors are widely used in electrical vehicle
filed for high voltage/ high current transmission between devices
such as vehicle chargers, battery packs, high-voltage distribution
boxes, motor controller, motor, air conditioner, PTC, lithium
battery, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- Electrical Motorcycle
- Electrical Scooters
- Ebikes
Parameters:
| Electrical Performance |
| Rated Current | 50A max |
| Rated Voltage | 1000V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 2.5mm2~6mm2 |
| Environment Performance |
| Protection Grade | IP67 (mated) |
| Operation Temperature | -40 ℃ ~+85 ℃ |
| Salt Spray Resistance | 48H (Mating State) |
| Reference Standard |
| USCAR-2 |

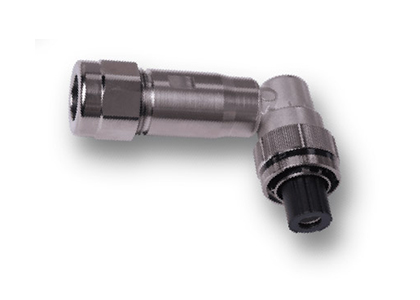

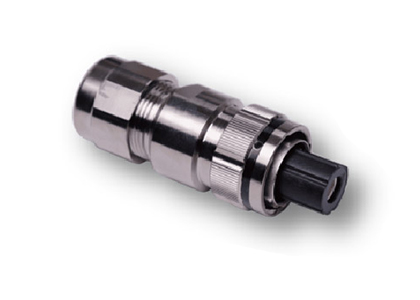

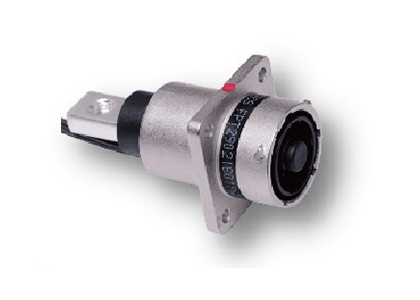

Product Pictures:

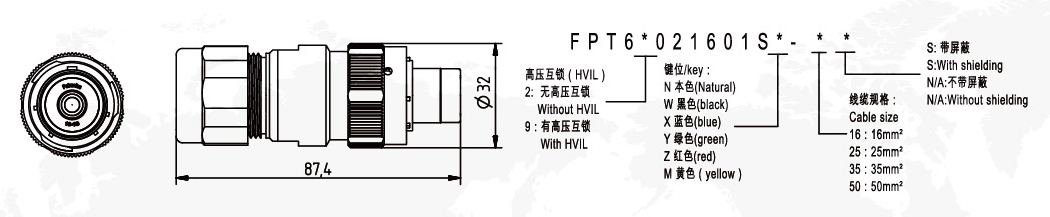

Drawings:
Socket (outside mounted)
Socket (inside mounted)
Plug (Straight)
