High Current IP67 Waterproof System Photovoltaic Power Station DC
Power Mobile Energy Storage Plastic Connector
Part No.: FSPC220160
Description:
This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between
components such as energy stoarge cabinet, energy storage station,
mobile energy storage vehicles, photovoltaic power station, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- Electrical Motorcycle
- Electrical Scooters
- Ebikes
Parameters:
| Electrical Performance |
| Rated Current | 70A/100A/125A |
| Rated Voltage | TUV DC 1000V |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 10mm2~25mm2 |
| Environment Performance |
| Protection Grade | IP67B |
| Operation Temperature | -40 ℃ ~+125 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
| USCAR-37 |
| UL 4128 |
| TUV 2pfG 2740-04.20 |

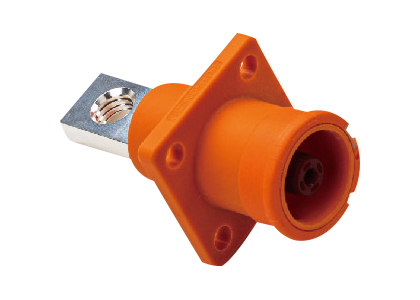

Product Pictures:
Drawings:
Socket (short )
Socket (long)
Plug
Company Profile
NeoPoewer is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, NeoPower delivers top
quality products and excellent services to customers around the
world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality
control system, and its products are CE, TVU, RoHs approved.
