3Pin Straight Right Angle High Power Electric Car Plug Receptacle
EV Connector
Part No.: C1079-3
Features:
Secondary lock function
Cable range: 25~50mm2
Poka-yoke
HVIL
Touch-proof
360°shielding
Application:
- Motor controller
- Lithium battery, lead-acid battery
- Driving system
- charging system
Specifications:
- Rated current: 120A (25mm2) 150A (35mm2), 200A (50mm2)
- Rated voltage:1000V
- Insulation resistance: ≥4000mΩ(power)≥1000mΩ(signal)
- Dielectric withstanding voltage:3500V AC (power), 1000V AC(signal)
- Temperature Range: -40~+125 ℃
- IP Rating: IP67&IP6K9K,IPXXB
Parameters:
| Rated Current: | 120A (25mm2), 150A (35mm2), 200A (50mm2) |
| Rated Voltage: | 1000V |
| Insulation Resistance: | ≥4000mΩ(power)≥1000mΩ(signal) |
| Dielectric Withstanding Voltage: | 3500V AC (power), 1000V AC(signal) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67&IP6K9K,IPXXB |
| Application: | Motor controller, battery, driving system, charging system |

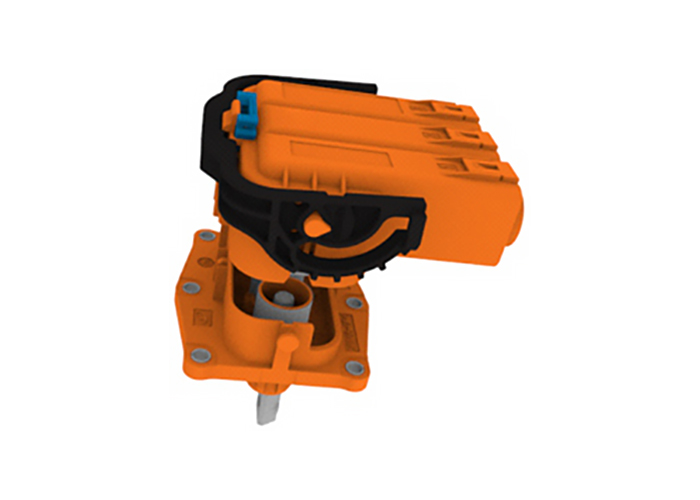

Product Pictures:
Drawings:

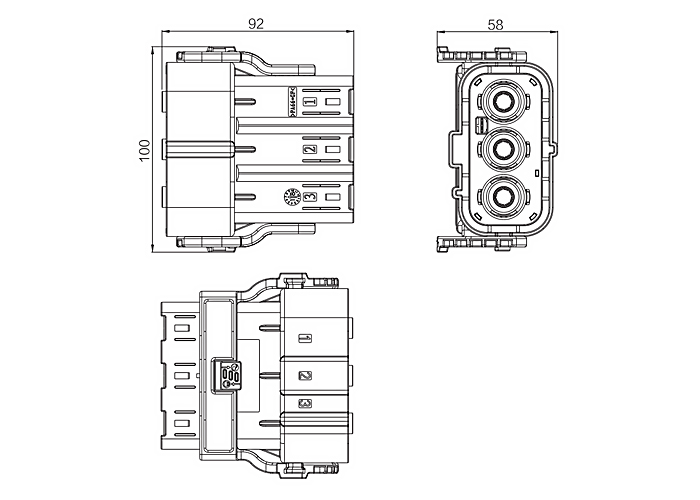

C1079-3 3pin 180° straight plug

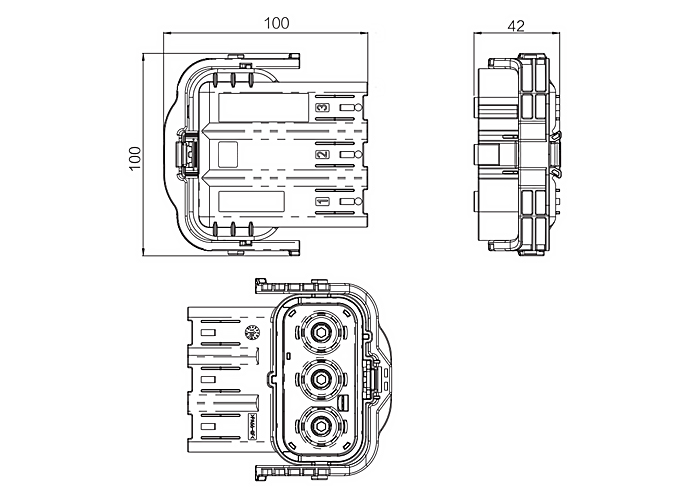

C1079-3 3pin 90° right angle plug

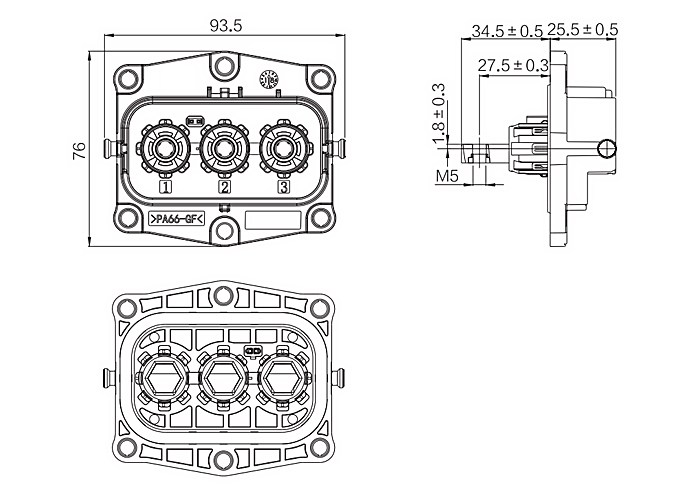

C 1079-3 3 pin receptacle
C 1079-3 3 pin mounting interface design
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, Neopower delivers top
quality products and excellent services to customers around the
world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality
control system, and its products are CE, TVU, RoHs approved.
