250A High Current Power High Voltage Electrical Connectors
Touchproof
Part No.: C757
Features:
Secondary lock function
Cable range: 25~70mm2
Poka-yoke
Touch-proof
360° Wire Outlet
Application:
- Motor controller
- Battery Pack
- PDU
Specifications:
- Rated current: 125A (25mm2) , 150A (35mm2), 200A (50mm2), 250A (70mm2)
- Rated voltage: 800V
- Insulation resistance: ≥5000mΩ(power)
- Dielectric withstanding voltage:3000V AC (power)
- Temperature Range: -40~+125 ℃
- IP Rating: IP67
Parameters:
| Rated Current: | 125A (25mm2) , 150A (35mm2), 200A (50mm2), 250A (70mm2) |
| Rated Voltage: | 800V |
| Insulation Resistance: | ≥5000mΩ(power) |
| Dielectric Withstanding Voltage: | 3500V AC (power) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67 |
| Application: | Motor controller, Battery Pack, PDU |
Product Pictures:
Drawings:
C757 25mm2~35mm2 Single Pin Right Angle 90°plug
C757 50mm2~70mm2 Single Pin Right Angle 90°plug

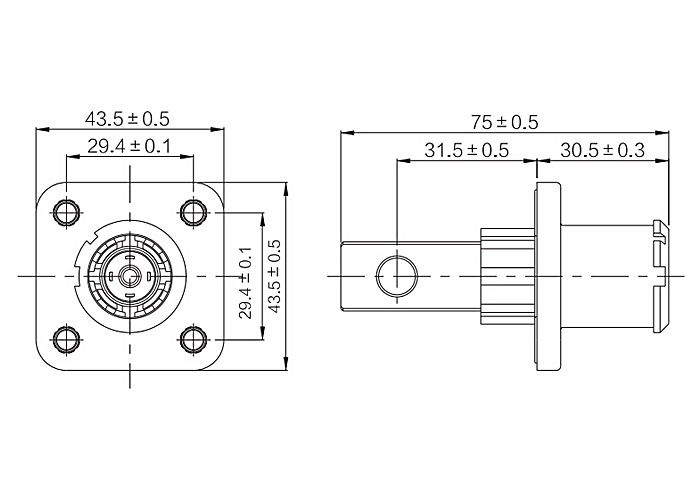

C757 25mm2~35mm2 Single Pin Receptacle
C757 50mm2~70mm2 Single Pin Receptacle
C757 25mm2~35mm2 Single Pin Receptacle Interface Mounting Design
C757 50mm2~70mm2 Single Pin Receptacle Interface Mounting Design
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, Neopower delivers top
quality products and excellent services to customers around the
world.
