Coaxial Plug Socket Electric Motorcycle Moped Scooter E-Bike
Lithium Battery Swapping Connector
Part No.:FGK2N
Description:
This product is applicable for electrical vehicles such as
electrical motorcyles, scooters, mopeds, ebikes, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- Electrical Motorcycle
- Electrical Scooters
- Ebikes
Parameters:
| Electrical Performance |
| Rated Current | 60A |
| Rated Voltage | 850V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance |
| Minimum Mating Cycles | 3000 times |
| Wire Range | 10mm2 |
| Environment Performance |
| Protection Grade | IP67/IP 20 |
| Operation Temperature | -40 ℃ ~+105 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
Product Pictures:
Drawings:

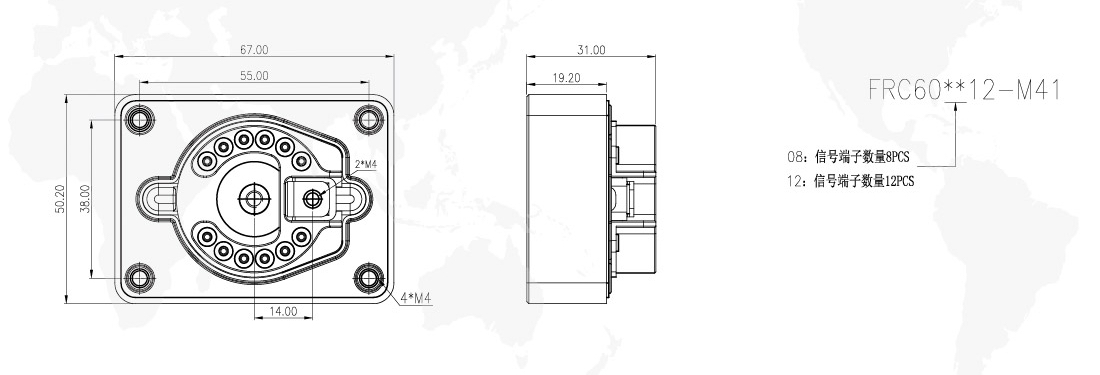

Socket

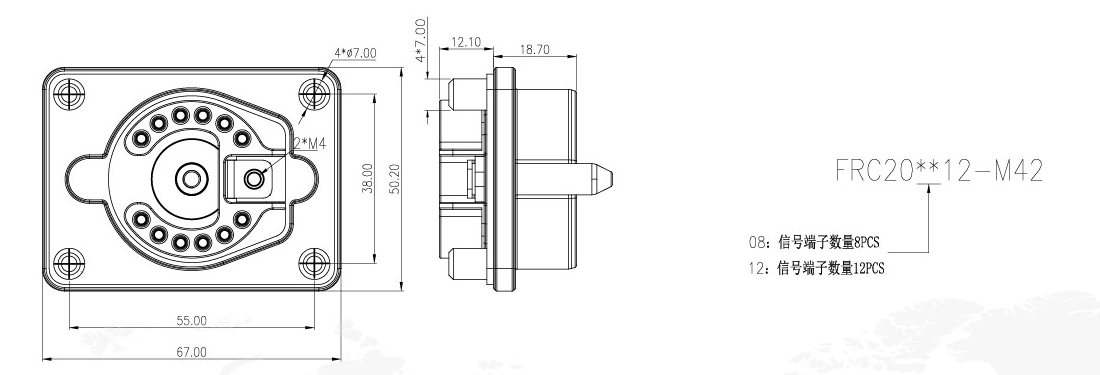

Plug
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof
connectors & cables, applicable for new energy battery pack, EV,
heavy-duty machinery, industrial connection, powertrain system,
solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou
Province for plastic shell connectors, and in Changzhou, Jiangsu
Province for metal shell connectors respectively. With rich
expertise and high-standard management, NeoPower delivers top
quality products and excellent services to customers around the
world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality
control system, and its products are CE, TVU, RoHs approved.
