12 Pin Canbus RS485 RS232 Communication Signal Transmission IP67
Waterproof 5000 Times Mating Cycle Connectors
Part No.:FEM-A200630C
Description:
This product is vehicle mounted low-voltage & signal hybrid
connector,used for power and signal transmission between the
vehicle components such as electrical motorcycles, electric
scooters, ebikes, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- Electrical Motorcycle
- Electrical Scooters
- Ebikes
Parameters:
| Electrical Performance |
| Rated Current | 5A |
| Rated Voltage | 300V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 1600V AC
2500V DC |
| Mechanical Performance |
| Minimum Mating Cycles | 5000 times |
| Wire Range | Signal: 20AWG |
| Environment Performance |
| Protection Grade | IP67 |
| Operation Temperature | -25 ℃ ~+105 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
Product Pictures:

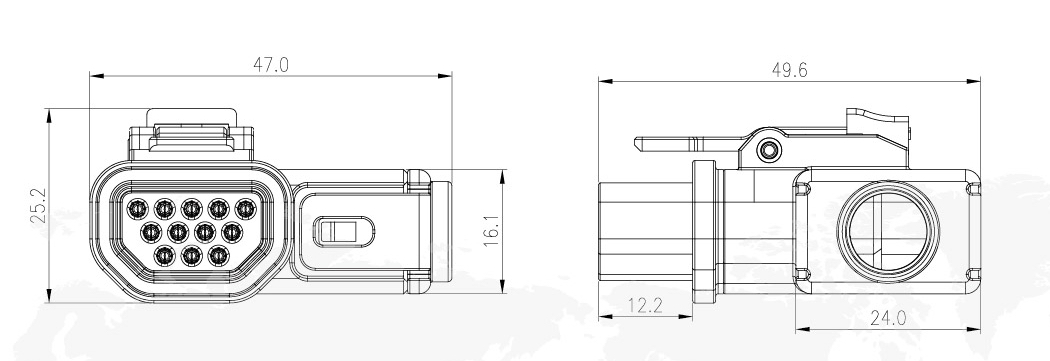

Drawings:
Socket
Plug
