HVIL High Voltage Interlock Signal Transmission Aviation Waterproof Plug And Socket Cable Connector

Product Categories

Neo Power Energy Tech Limited

Contact Now

Add to Cart

FPT interlock Canbus RS485 RS232 communication Signal Current Hybrid Connector

Socket code		Plug code
20	Wide flange socket	60	Straight waterproof unshielded RV structure plug
21	Wide flange socket with RV tail	62	Straight waterproof shield structure plug
22	Eight-sided flange socket	63	Multi-core shield plug
23	Wide flange socket 0 type ring waterproof	69	Straight interlocking waterproof shield plug
24	Wide flange socket 0-ring waterproof strap RV tail	80	Curved waterproof shield structure plug
25	Rear flange socket	81	Curved waterproof shield structure plug
28	Rear mounting flange socket with RV tail	83	Injection molded curved waterproof shielded plug
29	Interlocking socket	89	Injection molding interlocking curved waterproof shield structure plug
30	Socket with shield tail	90	Straight signal waterproof shield structure plug
40	Small flange socket
41	Flange socket curved PCB pin
42	Flange socket straight PCB pin
43	Custom flange housing
50	Flange socket
78	Multi-core shielded socket

Table 2

Plating code
01	Cr	06	Hard anodizing
02	High phosphorus chemical nickel	07	Electrophoresis
03	Tin-plated nickel	08	biack Zn
04	Olive green Zn	09	Stainless steel housing
05	Ternary alloy

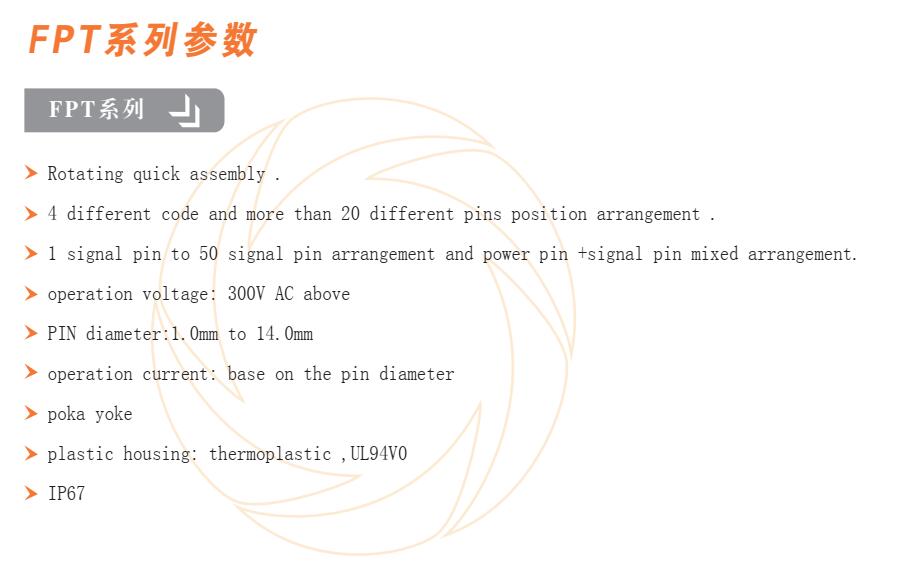

FPT series rubber core layout and main technical performance

SIZE	Rubber core arrangement	Hole position and Rated current	Rated voltage	Withstand voltage	Ambient temperature	Protection level	Mechanical life (non-charged state plug)
12		70A	1000V	2500V	-40°C -125°C	IP67	500CYCLES
		A&B:30A 1&2:13A	600V	2500V
		A&B:30A	800V	2500V
		A-H:5A	300V	1500V
		A-M:5A	300V	1500V
16		200A	800V	2500V
		A&B:70A 1&2:5A	800V	2500V
		A&B:70A	800V	2500V
		B&F:30A	500V	2500V
		B/D/F:30A	500V	2500V
		B/C/E/F:30A	500V	2500V
		A-F:30A	500V	2500V
		S/T/U/V:13A the remaining:5A	300V	1500V
		S/T/U/V:13A the remaining:5A	300V	1500V
18		A-D:40A	1000V
		A&B:40A 1~10:5A	A&B:500V 1~10:300V	A&B:2000V 1~10:1500V
		1-26:5A	400V	2000V
22		350A	1000V	2500V
		A&B:120A C&D:5A	800V	2500V
		1-35:5A	600V	2500V
		1-50:5A	300V	1500V
