IP68 Waterproof Male Pin 1500V PV Solar Connectors High Voltage

Ask Lasest Price
Brand Name :	Neopower
Model Number :	CN40-PM
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

IP68 Waterproof Male Pin 1500V PV Solar Connectors High Voltage

1500V MC4 High Voltage New Energy Battery Female Stamped Terminal Male Pin Solar PV Connector

Features:

Compatible with MC4
Simple on-site assembly, safe and quick
Safe connection with automatic lock
Long mating cycles
Compatible with different size of PV cable
High current connector

Basical Info:

Order No.	Part P/N		Cable Spec
	Connector	Terminal	Conductor Size (mm²)	Cable OD(φD mm)
CN40-PM-14	Male Connector CN40-CMMMM-H	Male Terminal PN40-CM-MT14	AWG 14 (2.5mm²)	φ4.5~φ7.8
	Female Connector CN40-CFPM-H	Female Terminal CN40-CM-FT14
CN40-PM12	Male Connector CN40-CMMMM-H	Male Terminal CN40-CM-MT12	AWG 12 (4.0mm²)
	Female Connector CN40-CFPM-H	Female Terminal CN40-CM-FT12
CN40-PM-10	Male Connector CN40-CMMMM-H	Male Terminal CN40-CM-MT10	AWG 10 (6.0mm²)
	Female Connector CN40-CFPM-H	Female Terminal CN40-CM-FT10
CN40-PM-01	Male Connector CN40-CMMMM-H	Male Terminal CN40-CM-MT01	AWG 14 (2.5mm²) AWG 12 (4.0mm²) AWG 10 (6.0mm²)
	Female Connector CN40-CFPM-H	Female Terminal CN40-CM-FT01

Technical Parameters:

Rated current	40A
Rated Voltage	1500V DC
Test Voltage	9KV (50Hz, 1min)
Contact Resistance of Connectors	＜0.5mΩ
Insulation materials	PPE
Terminal Material	Cooper, Tin plated
Operational Temperature Range	-40℃~+85℃ (IEC)
Over-voltage Category/ Pollution Degree	CATIII/2
Protection Degree	IP2X/IP68
Inflammability Class	UL94-V0
Safety Class	II
Insertion Force/Withdrawal Force	≤50N/ ≥50N
Compatible Cable Cross Section	CN40-PM:2.5/4.0/6.0mm² (14/12/10AWG)
Terminal Connection Method	Crimping

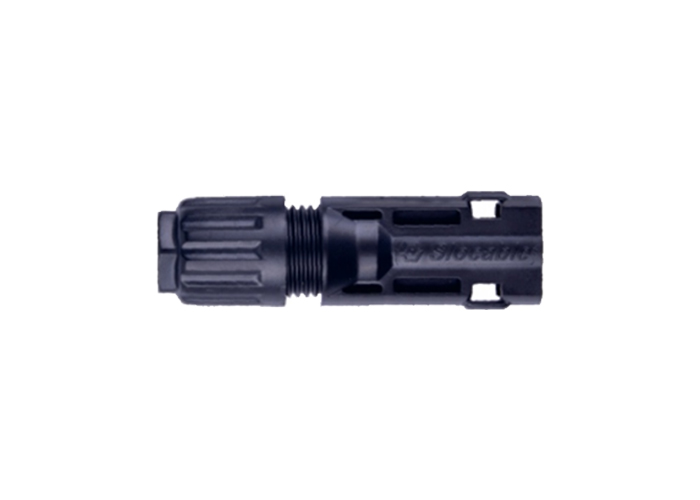

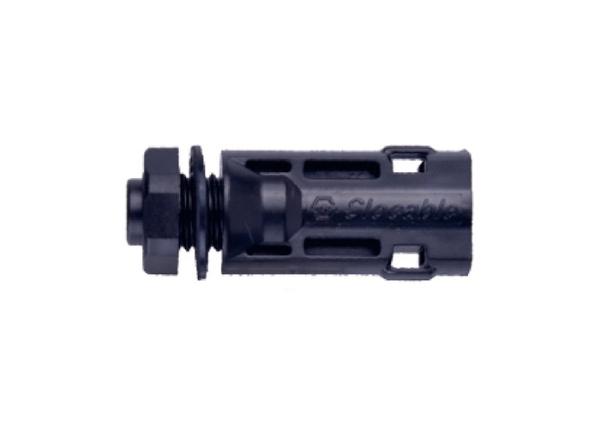

Product Pictures:

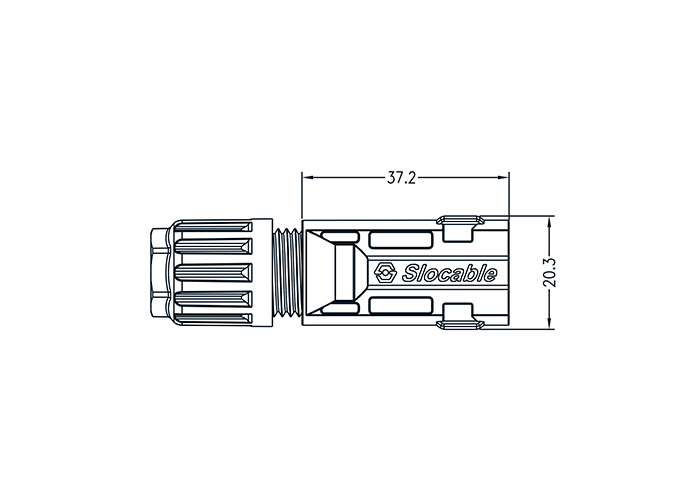

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
