High Voltage Battery Connector 2 Pin 25 mm2 to 70 mm2 Straight Head
Part No.: FHV20*280CN-*M61
Description:
This product is vehicle mounted high-voltage plastic connector,
which is used for high-voltage connection between components such
as vehicle charger, battery pack, high-voltage distribution box,
motor controller, motor, air conditioner, PTC, battery, etc.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- Three Color are available
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- BMS/Energy Storage
- Lithium Battery
- EV/HEV
- Rail Mass Transit
- Process Control/Automation
- Heavy Equipment
| Electrical Performance |
| Rated Current | 125A/150A/200A/250A |
| Rated Voltage | 1000V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 25 mm2~70mm2 |
| Environment Performance |
| Protection Grade | IP67B or IP6K9K |
| Operation Temperature | -40 ℃ ~+125 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
| USCAR-37 |
| LV-215 |

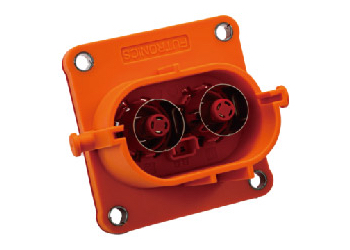

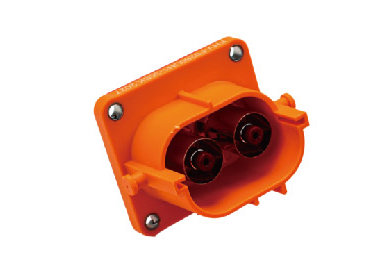

Product Pictures:

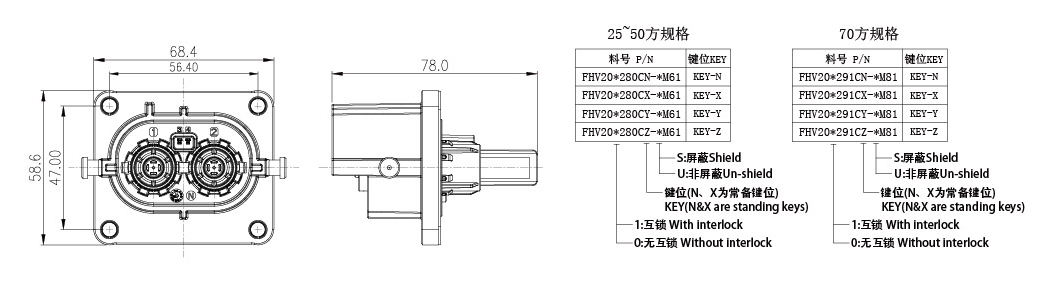

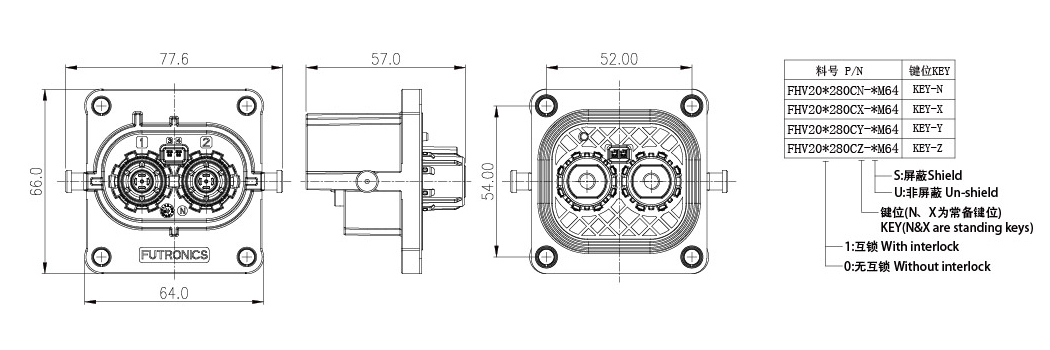

Drawings:
Hole A-Flat Terminals
Hole A-Round Terminals
Hole B-Flat Terminals
Holr B-Round Terminals

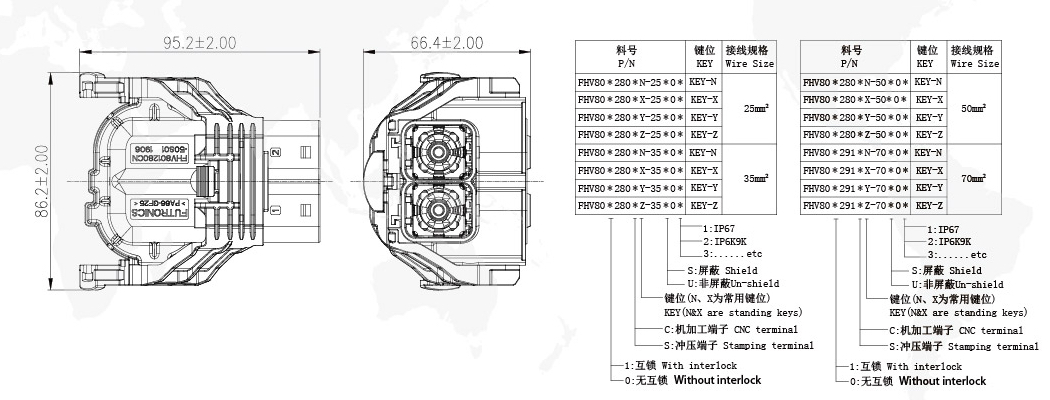

Straight Head

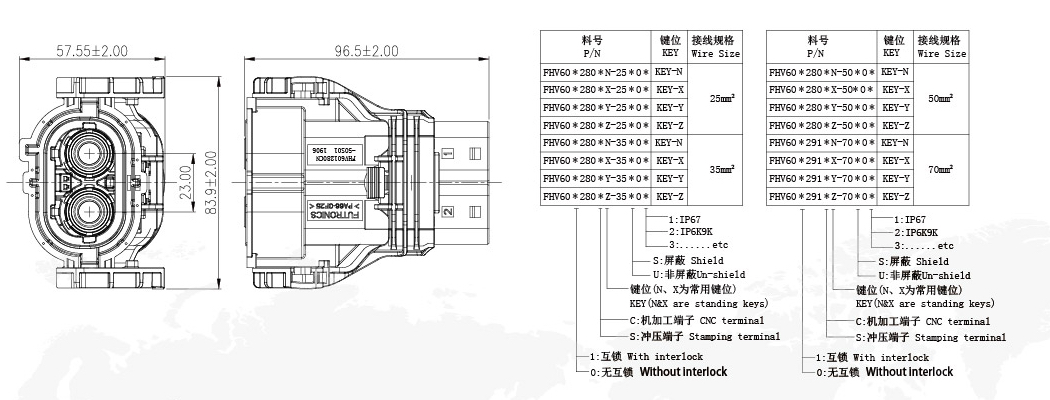

90° Right Angle Head
