2-Pin 6mm Terminal Battery Pack Motor PDU Charging Systems
Inverters Connectors Receptacles Plugs
Part No.:
Description of High Current Battery Connectors:
This product is vehicle mounted high-voltage plastic shell
connector, suitable for lithium battery packs for electrical
motorcycle, scooter, marine, boat, RV application
Features of High Current Battery Connectors:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- Non-EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application of High Current Battery Connectors:
- Battery Packs
- High-voltage Distribution Box
- Motor & Controller
- Process Control/Automation
- Heavy Equipment
- PTC
Parameters of High Current Battery Connectors:
| Basic Feature |
| Number of Pins (Poles) | 2pin |
| Terminal Size | 6mm |
| Shell Materials | Plastic |
| Plug Type | Straight |
| CPA | With |
| Keyway /Poka-yoke | A:black, B:Red |
| Cable Connection Method | B: Busbar, T: Threaded, C:Crimping |
| Threaded Hole Size (Busbar & Threaded) | M5 *0.8 Tread |
| EMI Shielded | Optional |
| Electrical Characteristics |
| Insulation Resistance | ＞200mΩ |
| Rated Voltage | 1000VDC/AC |
| Rated Current | 100A/ 120A |
| Dielectric Voltage | 3500VAC/6000VDC |
| Shielded Efficiency | 70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz) |
| HVIL | Optional |
| Mechanical Characteristics |
| Mating Cycle | ≥100 times |
| Applicable Cable Size | 16mm2, 25mm2 |
| Vibration | LV215 |
| IP Grade (mated) | IP 6K9K/IPX8/IPXXD |
| IP Grade (unmated) | IPXXB |
| Touch Proof | DIN EN60529 |
| Environmental Characteristics |
| Operational Temp. | -40℃ ~125℃ |
| Other | LV215 |
| Application |
| Battery Pack, Motor, PDU, Charging Systems, Inverters |
Product Pictures:

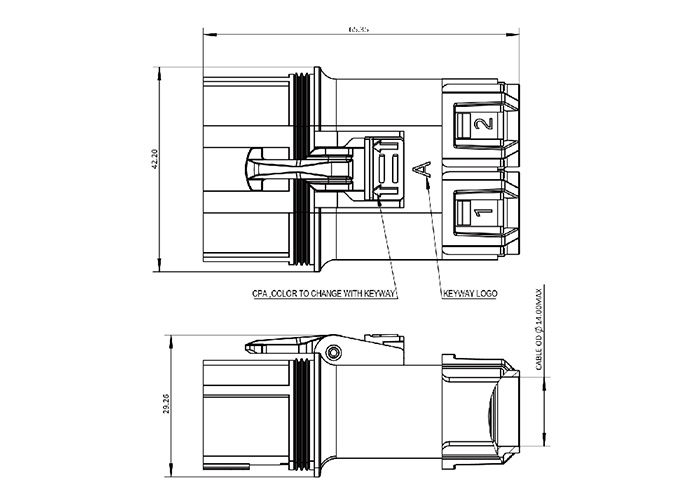

Drawings:
