    LV215 High Current Battery Connectors , IP67 High Current DC Connector

    Ask Lasest Price
    Brand Name : NeoPower
    Model Number : CHVJT0
    Certification : TUV CE IEC FCC RoHs GB/T
    Price : Negotiable according to Quantities
    Payment Terms : Western Union, MoneyGram
    Supply Ability : 50000 per day
    Delivery Time : 3~7 days
    • Product Details
    • Company Profile

    LV215 High Current Battery Connectors , IP67 High Current DC Connector

    LV215 High Current Battery Connectors , IP67 High Current DC Connector

    Part No.:CHVJT0

    Description:

    It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.

    Features:

    • Touch Proof
    • Compact Robust Design ,Various Termination Options
    • EMI Shielded
    • Quick Lock and Press-to- Release Design
    • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
    • Accept OEM & ODM for your customized requirement;

    Application:

    • Battery Packs
    • Electrical Motorcycle
    • Electrical Scooters
    • Ebikes

    Parameters:

    Electrical Performance
    Rated Current300A max
    Rated Voltage1000V DC
    Insulation Resistance

    5000 mΩ Min (Dry)

    200 mΩ Min (RH 95%)

    Test Voltage3000V AC
    Mechanical Performance
    Minimum Mating Cycles500 times
    Wire Range50mm2~70mm2
    Environment Performance
    Protection GradeIP67 (mated)
    Operation Temperature-40 ℃ ~+85 ℃
    Salt Spray Resistance48H (Mating State)
    Reference Standard
    USCAR-2
    USCAR-37
    RoHS
    LV215

    Product Pictures:

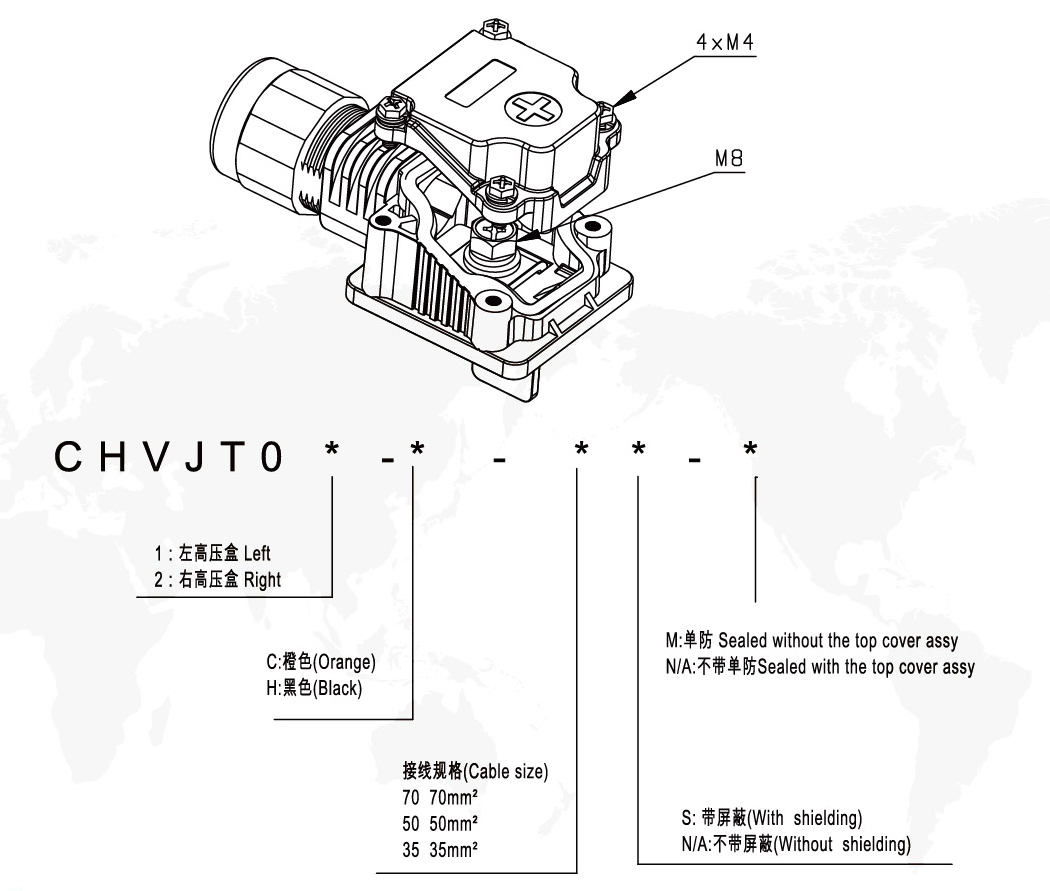

    Drawings:

    Company Profile

    NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

    NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.


    Certifications & Approvals


    The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
