High Amp 200A Electric Scooter Battery Connector TUV Certification

Ask Lasest Price
Brand Name :	Futronics
Model Number :	FST
Certification :	TUV CE IEC FCC RoHs GB/T
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

High Amp 200A Electric Scooter Battery Connector TUV Certification

M8 Combiner Box Electric Motorcycle Tricycle Ebikes Scooters Gof Cart LEV Lithium Ion Battery Pack Terminals Connectors

Part No.:CHVJT0

Description:

It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.

Features:

Touch Proof
Compact Robust Design ,Various Termination Options
EMI Shielded
Quick Lock and Press-to- Release Design
Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
Accept OEM & ODM for your customized requirement;

Application:

Battery Packs
Electrical Motorcycle
Electrical Scooters
Ebikes

Parameters:

Electrical Performance
Rated Current	200A max
Rated Voltage	1000V DC
Insulation Resistance	5000 mΩ Min (Dry) 200 mΩ Min (RH 95%)
Test Voltage	3000V AC
Mechanical Performance
Minimum Mating Cycles	100 times
Wire Range	35mm2~70mm2
Environment Performance
Protection Grade	IP67 /IP55
Operation Temperature	-40 ℃ ~+85 ℃
Salt Spray Resistance	48H (Mating State)
Reference Standard
USCAR-2

USCAR-37
RoHS

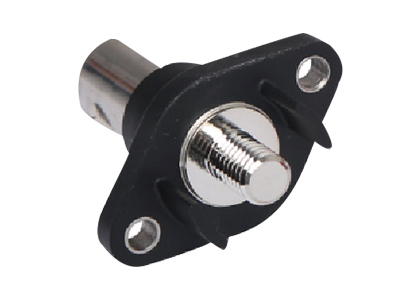

Product Pictures:

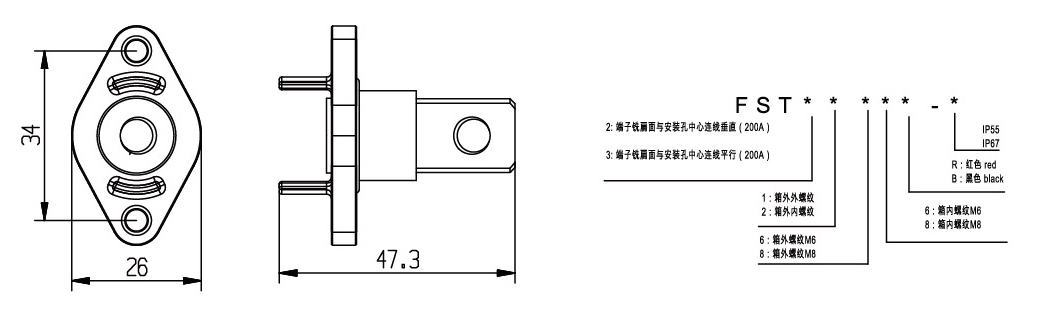

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
