Multi-Pin CANbus RS485 RS232 I2C Communication Emi Shielded Signal
Transmission DC Power Connector
Part No.: FLV
Description:
This product is vehicle signal connector ,used for signal
transmission between the vehicle charger, battery pack, high
voltage distribution box, motor controller, motor, air conditioner,
PTC and other components.
Features:
- Touch Proof
- Compact Robust Design ,Various Termination Options
- EMI Shielded
- Quick Lock and Press-to- Release Design
- Competitive price from factory with Small MOQ to help you reduce
inventories and avoid market risks;
- Accept OEM & ODM for your customized requirement;
Application:
- Battery Packs
- High-voltage Distribution Box
- Motor & Controller
- Process Control / Automation
- Heavy Equipment
- PTC
Parameters:
| Electrical Performance |
| Rated Current | Power: 13 max Signal: 5A max |
| Rated Voltage | 500V DC |
| Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| EMI Shielded | Yes |
| Mechanical Performance |
| Minimum Mating Cycles | 500 times |
| Wire Range | 0.35 mm2~1.5mm2 |
| Environment Performance |
| Protection Grade | IP67 |
| Operation Temperature | -40 ℃ ~+125 ℃ |
| Salt Spray Resistance | 144H (Mating State) |
| Reference Standard |
| USCAR-2 |
| USCAR-37 |

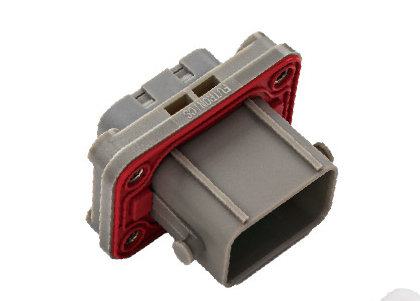

Product Pictures
Drawings:
Socket
Plug
