2000VAC Multi Pin Cable Connectors

Product Categories

Neo Power Energy Tech Limited

Contact Now

Ask Lasest Price
Certification :	CE IEC FCC RoHs

Add to Cart

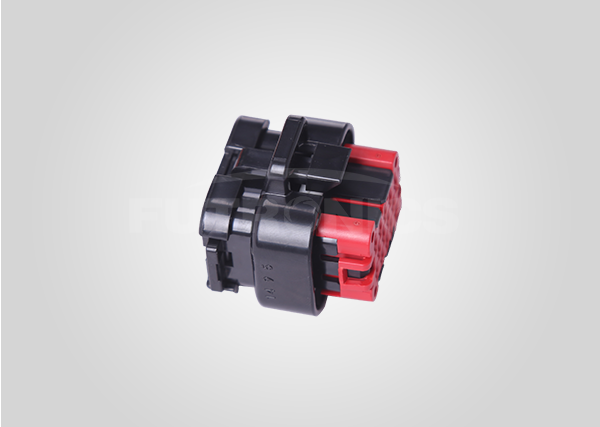

Multi pin signal connector

Rated current	8A/ 0.5mm², 0.75mm², 1.0mm², 1.5mm^2,
Rated voltage	DC 500V
Range of working temperature	-40°C~125°C
Withstand voltage	2000VAC (1min)
Insulation resistance	5000MΩ min(@25℃) (Dry) 200mΩ min (Rh 95%)
Mechanical life	500 cycles
Waterproof level	IP67 (plugged)
Salt spray level	144h (plugged)
Number of terminals	14 pcs(1.3mm)
Temperature rise (rated current)	MAX.40K
Terminal material and plating	Copper alloy , Sn plating
Insulator material	Thermoplastic
Fire-proof level	UL94-V0
