High Precision 32 Pin Multi-Pin Singal System PDU Transmission Double Locking Connector CE

Part No.: S1024

Features:

• Secondary lock function

• Cable range: 0.5~1.5mm²

• Poka-yoke

Application:

• Signal System

Specifications:

• Rated current: 5A~10A
• Rated voltage:24V
• Insulation resistance: ≥5000mΩ
• Dielectric withstanding voltage: 1000V AC
• Temperature Range: -40~+125 ℃
• IP Rating: IP67
• Mechanical Life≥ 50times
• Number of Pins: 32 pins

Parameters:

Product Pictures:

Drawings:

S1024 32pin 180°plug

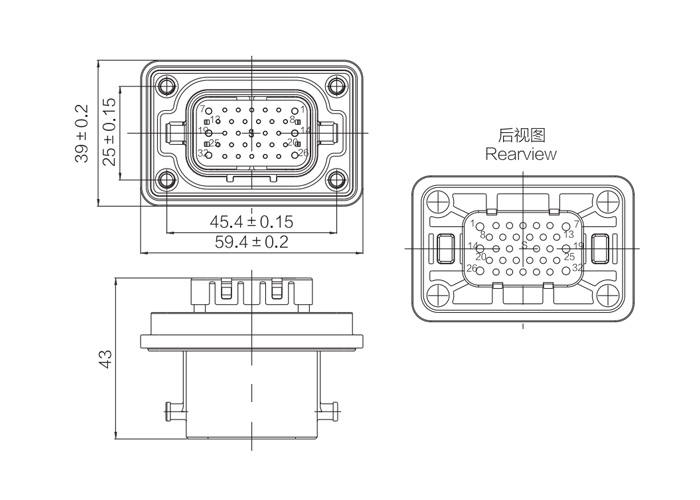

S1024 32pin Receptacle

S1024 32pin Pole Mounting Design

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Neo Power Energy Tech Limited is dedicated to global sales for high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neo Power has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management,  Neo Power delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
