RoHs Transmission Cable Connector , 35pin Transmission Harness Connector

Ask Lasest Price
Brand Name :	Neopower
Model Number :	S1146
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

RoHs Transmission Cable Connector , 35pin Transmission Harness Connector

Part No.: S1146

Features:

Cable range: 16~20AWG, 1.5mm²1mm²

Cable Outer Diameter: φ1.7~2.7mm

Poka-yoke

Application:

Signal System

Specifications:

Rated current: 8A max.
Rated voltage:250V
Insulation resistance: ≥5000mΩ
Contact Resistance: ≤30 mΩ
Dielectric withstanding voltage:1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67, Receptacle:IPX7
Number of Pins: 35Pin

Parameters:

Rated Current:	8A max.
Rated Voltage:	250V
Cable Range:	16~20AWG, 1.5mm²1mm² Cable Outer Diameter: φ1.7~2.7mm
Number of Pins	35 Pin
Insulation Resistance:	≥5000mΩ
Contact Resistance	≤30 mΩ
Dielectric Withstanding Voltage:	1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67, Receptacle:IPX7
Application:	Signal System

Product Pictures:

Drawings:

S1146-EV S35P plug

S1146-EV P35

S1146 PCB Layout

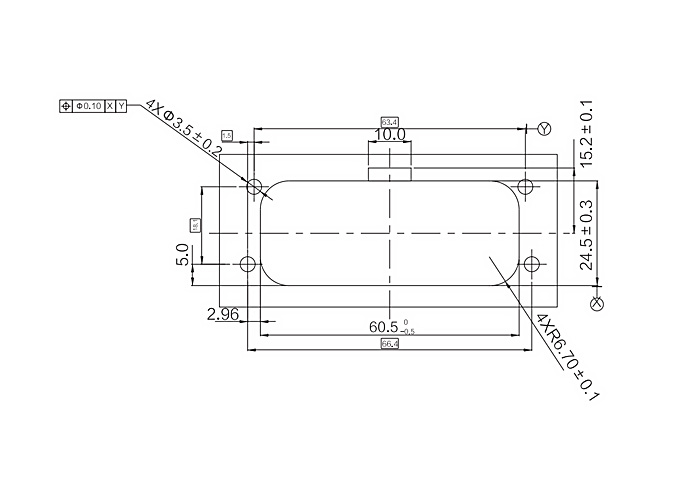

S1146 Mounting Interface Design
