12 Pin 5A Bayonet Locking Power Signal Connector With Poka Yoke Key

Ask Lasest Price
Brand Name :	Neopower
Model Number :	S1129
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

12 Pin 5A Bayonet Locking Power Signal Connector With Poka Yoke Key

12 Pin Bayonet Locking Signal Connector With Poka-Yoke Key For BMS Battery Pack Industrial Control System

Part No.: S1129

Features:

Bayonet Connection
Cable range: 0.75~1.5mm²
Poka-yoke

Application:

BMS
Lithium battery, lead-acid battery
Industrial Control System
Signal System

Specifications:

Rated current: 5A (0.75mm²) 8A (1mm²), 10A (1.5mm²)
Rated voltage: 24V
Insulation resistance: ≥2000mΩ
Dielectric withstanding voltage:1000V AC(signal)
Temperature Range: -40℃~+125 ℃
IP Rating: IP67&IP6K9K

Parameters:

Rated Current:	5A (0.75mm²) 8A (1mm²), 10A (1.5mm²)
Rated Voltage:	24V
Insulation Resistance:	2000mΩ(signal)
Dielectric Withstanding Voltage:	1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67&IP6K9K
Application:	Battery Pack, BMS, Industrial Control System, Signal System

Product Pictures:

Drawings:

S1129-EV- S12-plug

S1129-EV-P12R Receptacle

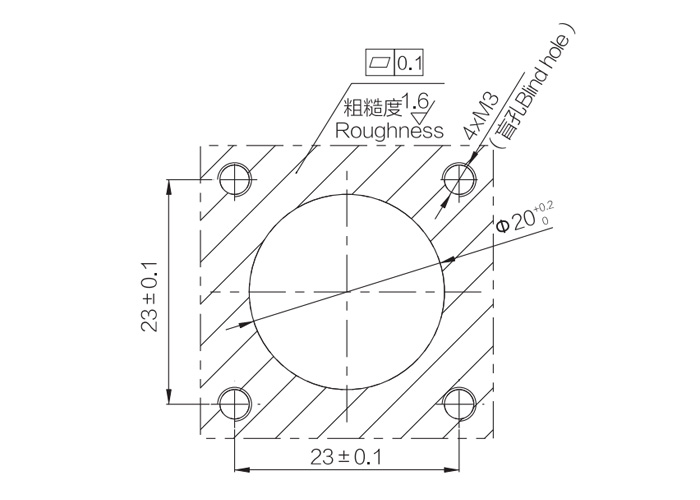

S1129-EV12 pin Mounting Interface Design
