1500V High Voltage MC4 PV Branch Connectors Energy Storage UL94-V0

Ask Lasest Price
Brand Name :	Neopower
Model Number :	CN40-PM
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

1500V High Voltage MC4 PV Branch Connectors Energy Storage UL94-V0

1500V High Voltage MC4 PV Solar Energy Storage Branch Connector Assembly Wires Cables

Basical Info:

BC40-2M1F	2Male to 1 Female
BC40-2F1M	2 Female to 1 Male
BC-50-3M1F	3 Male to 1 Female
BC50-3F1M	3 Female to 1 Male

Technical Parameters:

Rated current	50A
Rated Voltage	1500V DC
Test Voltage	8KV (50Hz, 1min)
Contact Resistance of Connectors	＜1mΩ
Insulation materials	PPE
Terminal Material	Cooper, Tin plated
Operational Temperature Range	-40℃~+85℃ (IEC)
Over-voltage Category/ Pollution Degree	CATIII/2
Protection Degree	IP2X/IP68
Inflammability Class	UL94-V0
Safety Class	II
Insertion Force/Withdrawal Force	≤50N/ ≥50N

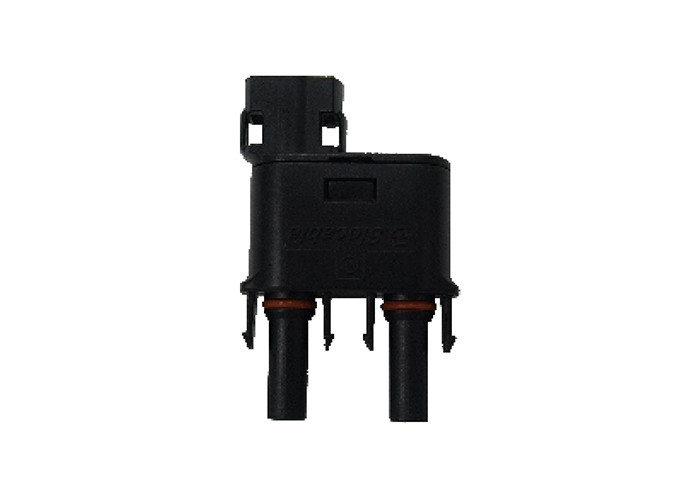

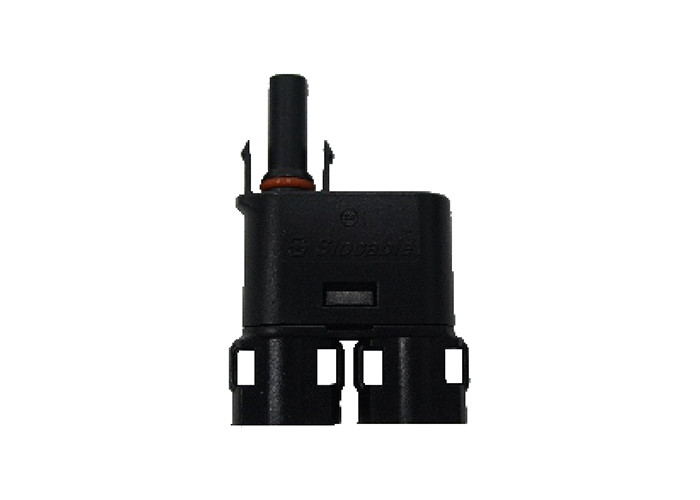

Product Pictures:

1500V High Voltage MC4 PV Branch Connectors Energy Storage UL94-V0

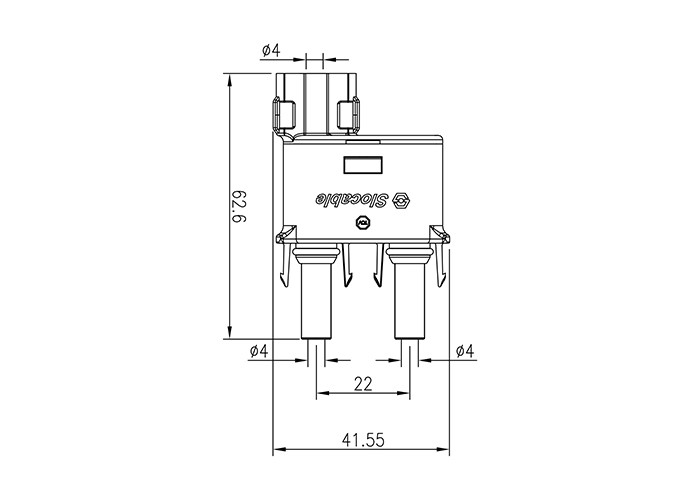

Drawings:

1500V High Voltage MC4 PV Branch Connectors Energy Storage UL94-V0
