    3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

    Ask Lasest Price
    Brand Name : Neopower
    Model Number : C989
    Certification : CE IEC FCC RoHs
    Price : Negotiable according to Quantities
    Payment Terms : Western Union, MoneyGram
    Supply Ability : 50000 per day
    Delivery Time : 3~7 days
    • Product Details
    • Company Profile

    3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

    3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

    Part No.: C989

    Features:

    • Secondary lock function

    • Cable range: 4~6mm2

    • Poka-yoke

    • HVIL

    • Touch-proof

    • 360°shielding

    Application:

    • OBC
    • Oil Pump Control
    • Air Pump Control
    • PDU

    Specifications:

    • Rated current: 40A (6mm2) 30A (4mm2)
    • Rated voltage:800V
    • Insulation resistance: ≥2000mΩ(power); ≥1000mΩ(signal)
    • Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
    • Temperature Range: -40~+125 ℃
    • IP Rating: IP67&IP6K9K

    Parameters:

    Rated Current:40A (6mm2) 30A (4mm2)
    Rated Voltage:

    800V

    Insulation Resistance:≥2000mΩ(power)≥1000mΩ(signal)
    Dielectric Withstanding Voltage:3000V AC (power), 1000V AC(signal)
    Temperature Range:-40~+125 ℃
    IP Rating:IP67&IP6K9K,IPXXB
    Application:

    OBC, Oil Pump Control, Air Pump Control, PDU


    Product Pictures:


    Drawings:

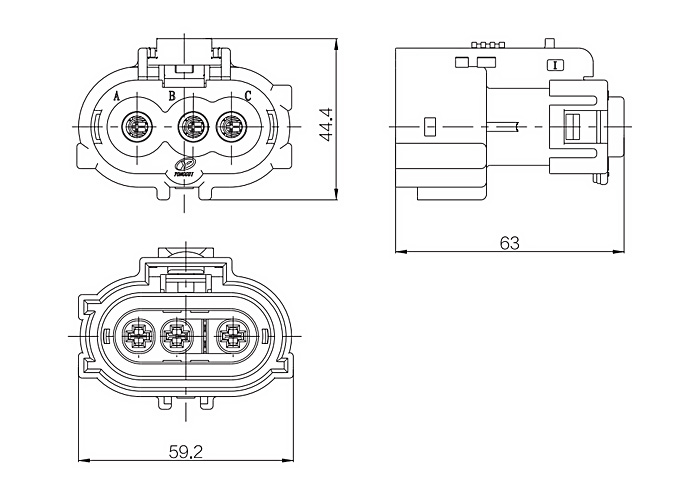

    C989 3pin 180°plug

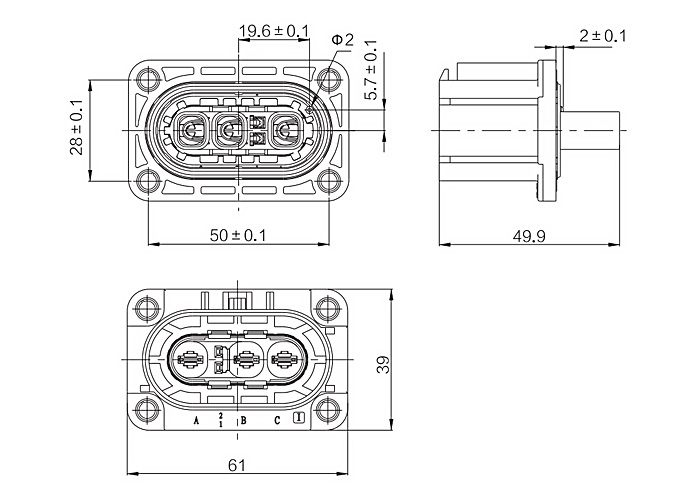

    C989 3pin Receptacle

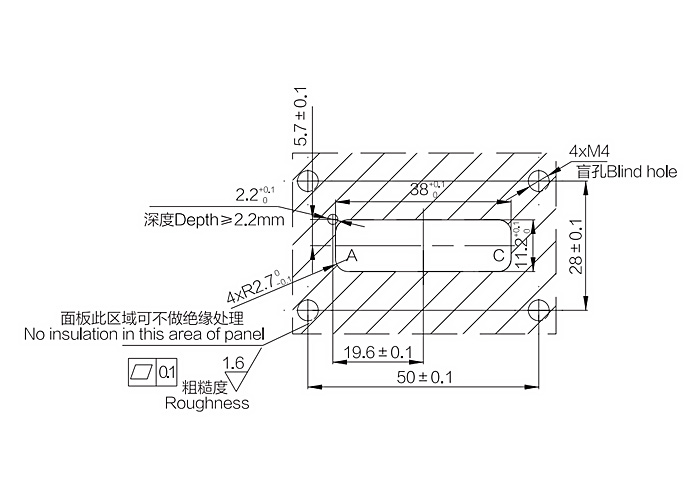

    C989 3pin Receptacle Mounting Hole Design

    Company Profile

    NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

    Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.


    Certifications & Approvals


    The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
