250A 1 Pin M8 Battery High Voltage High Current Connectors Motor Controller

Ask Lasest Price
Brand Name :	Neopower
Model Number :	C196-380
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

250A 1 Pin M8 Battery High Voltage High Current Connectors Motor Controller

Part No.: C196-380

Features:

Cable range: 70mm²

Application:

Motor controller
Distribution System
E-Motor

Specifications:

Rated current: 250A (70mm²)
Rated voltage:800V
Insulation resistance: ≥5000mΩ
Dielectric withstanding voltage:3500V AC (power)
Temperature Range: -40~+125 ℃
IP Rating: IP67

Parameters:

Rated Current:	250A (70mm2)
Rated Voltage:	800V
Insulation Resistance:	≥5000mΩ(power)
Dielectric Withstanding Voltage:	3000V AC
Temperature Range:	-40~+125 ℃
IP Rating:	IP67
Application:	Motor controller, Distribution System,E-Motor

Product Pictures:

Drawings:

C 196-380 Type A Connector

C 196-380 Type B Connector

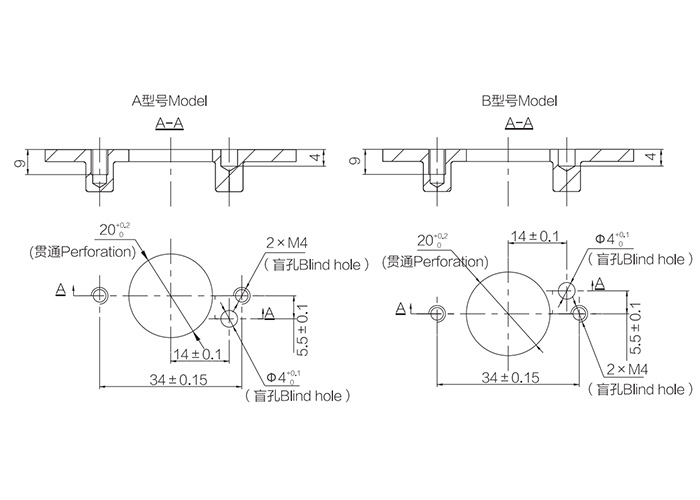

C 196-380 Type A Connector Mounting Design

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
