HVIL High Voltage Electrical Connectors 250A 2 Pin Connector Plug

Ask Lasest Price
Brand Name :	Neopower
Model Number :	C1017
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

HVIL High Voltage Electrical Connectors 250A 2 Pin Connector Plug

Part No.: C1017

Features:

Secondary lock function
Cable range: 25~50mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

OBC
Oil Pump Controller
Air Pump Controller
PDU

Specifications:

Rated current: 25A (2.5mm²)
Rated voltage:800V
Insulation resistance: ≥5000mΩ(power)≥1000mΩ(signal)
Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K

Parameters:

Rated Current:	25A (2.5mm2)
Rated Voltage:	800V
Insulation Resistance:	≥5000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage:	3000V AC (power), 1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67&IP6K9K
Application:	OBC, Oil Pump Controller, Air Pump Controller,PDU

Product Pictures:

Drawings:

C1017 3pin 180°plug

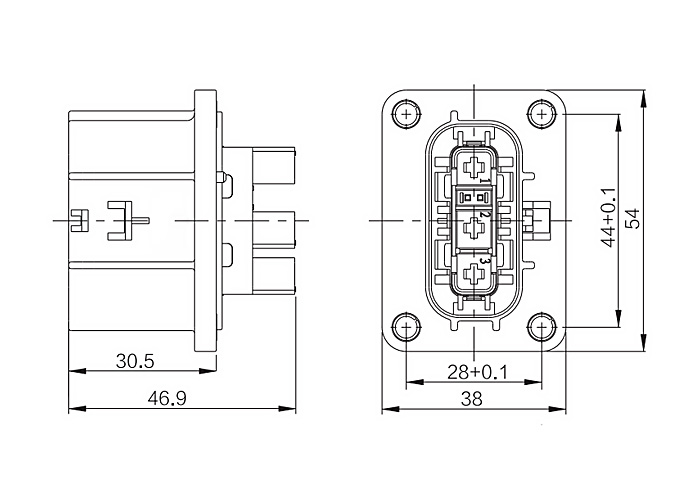

C1017 3pin 180° Receptacle

C1017-3pin Wire-to-Wire Receptacle

C1017 3pin Receptacle Installation Hole Design

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Futronics TUV certiciate
