FCC High Voltage Power Socket , 4 Pin High Current Electrical Connectors

Ask Lasest Price
Brand Name :	Neopower
Model Number :	C1174-4pin
Certification :	CE IEC FCC RoHs
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

FCC High Voltage Power Socket , 4 Pin High Current Electrical Connectors

Part No.: C1127-4Pin

Features:

Secondary lock function
Cable range: 4~6mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

OBC
PTC
Air Condition Compressor
PDU

Specifications:

Rated current: 30A (4mm²) 40A (6mm²)
Rated voltage:800V
Insulation resistance: ≥2000mΩ(power); ≥1000mΩ(signal)
Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K

Parameters:

Rated Current:	30A (4mm²) 40A (6mm²)
Rated Voltage:	1000V
Insulation Resistance:	≥2000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage:	3000V AC (power), 1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67&IP6K9K
Application:	OBC, PTC, Air Condition Compressor, PDU

Product Pictures:

Drawings:

C1174 4pin 180°plug

C1174 4pin Receptacle

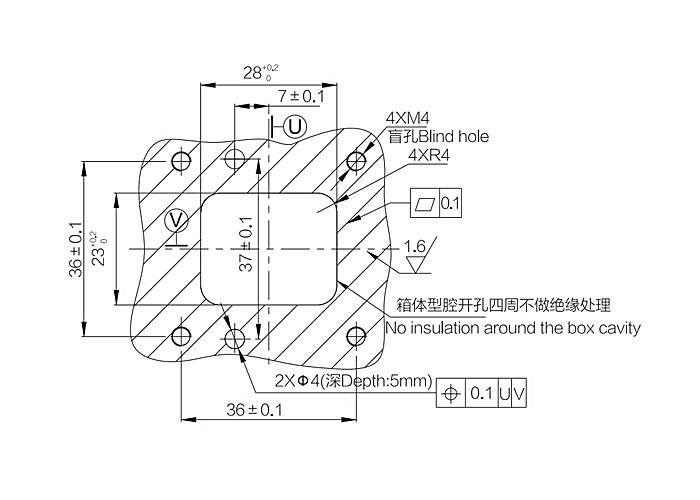

C1174 4pin Receptacle Mounting Holes
