2 Touch 4 Hole Flange Panel Male e scooter battery connector with Secondary lock function

Ask Lasest Price
Brand Name :	Neopower
Certification :	USCAR-2 USCAR-37 LV-215
Price :	Negotiable according to Quantities
Payment Terms :	Western Union, MoneyGram
Supply Ability :	50000 per day
Delivery Time :	3~7 days

Add to Cart

Product Details
Company Profile

2 Touch 4 Hole Flange Panel Male e scooter battery connector with Secondary lock function

Electric scooter 2 touch 4 hole Flange Panel Male connector

Features:

Secondary lock function
Cable range: power:8AWG signal: Power:8AWG Signal: 20AWG
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

Motor controller
Lithium battery, lead-acid battery
Driving system
charging system

Specifications:

Rated current: 60A
Rated voltage:1000V DC
Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric withstanding voltage:3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67(Socket waterproof)

Parameters:

Rated Current:	60A
Rated Voltage:	1000V DC
Insulation Resistance:	5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage:	3000V AC
Temperature Range:	-40~+125 ℃
IP Rating:	IP67(Socket waterproof)
Application:	Motor controller, battery, driving system, charging system

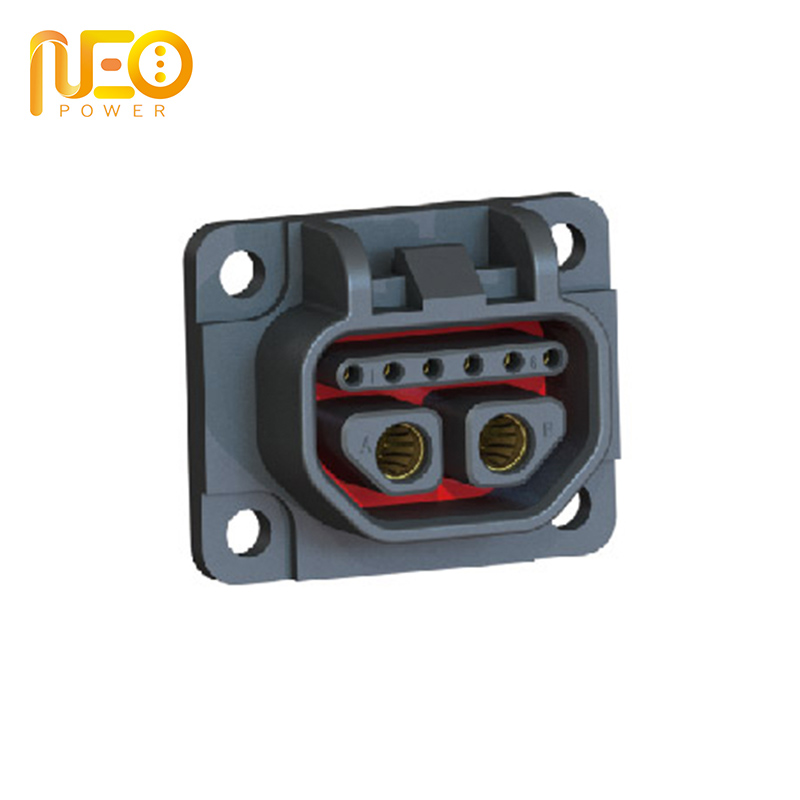

Product Pictures:

Drawings:
